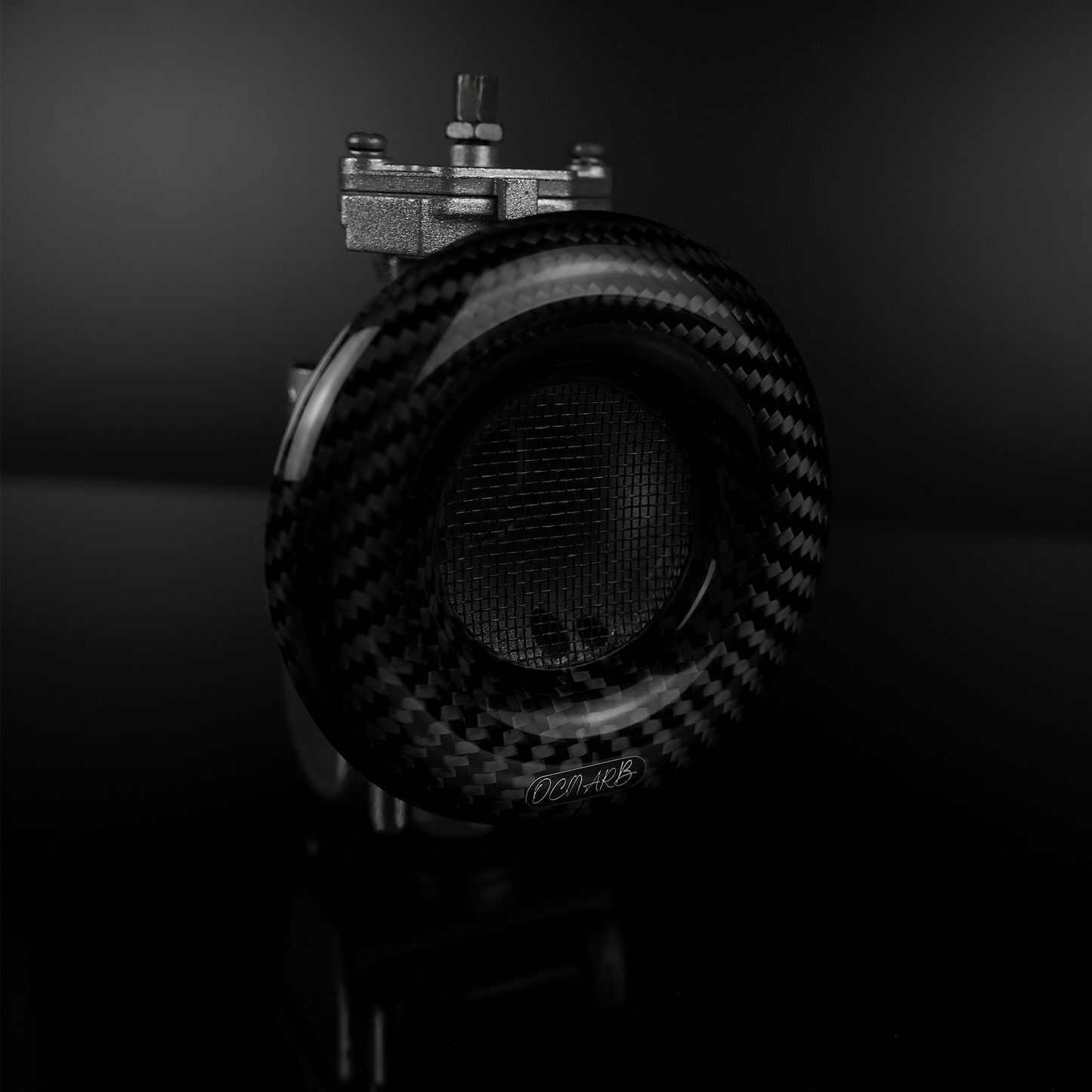

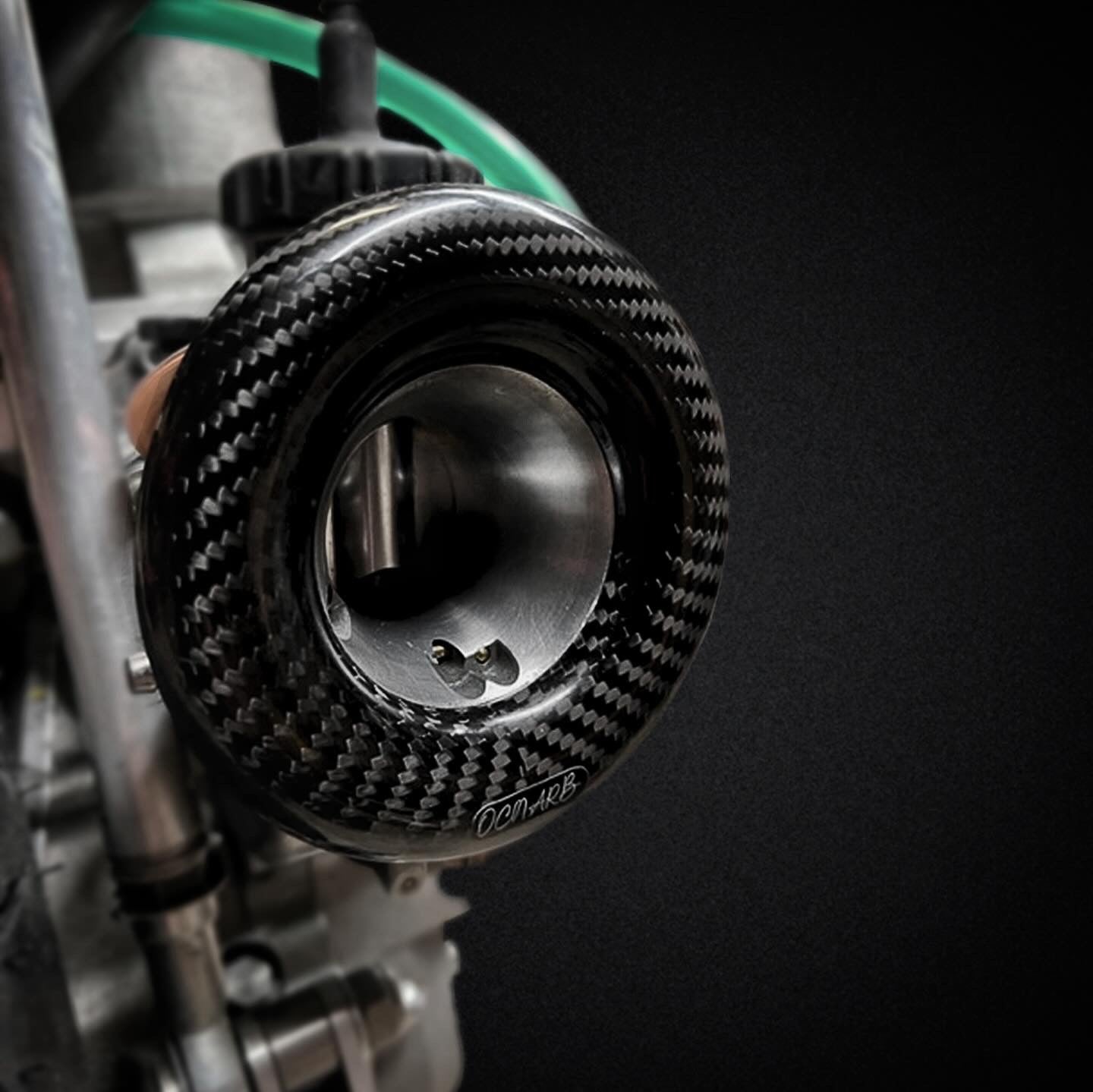

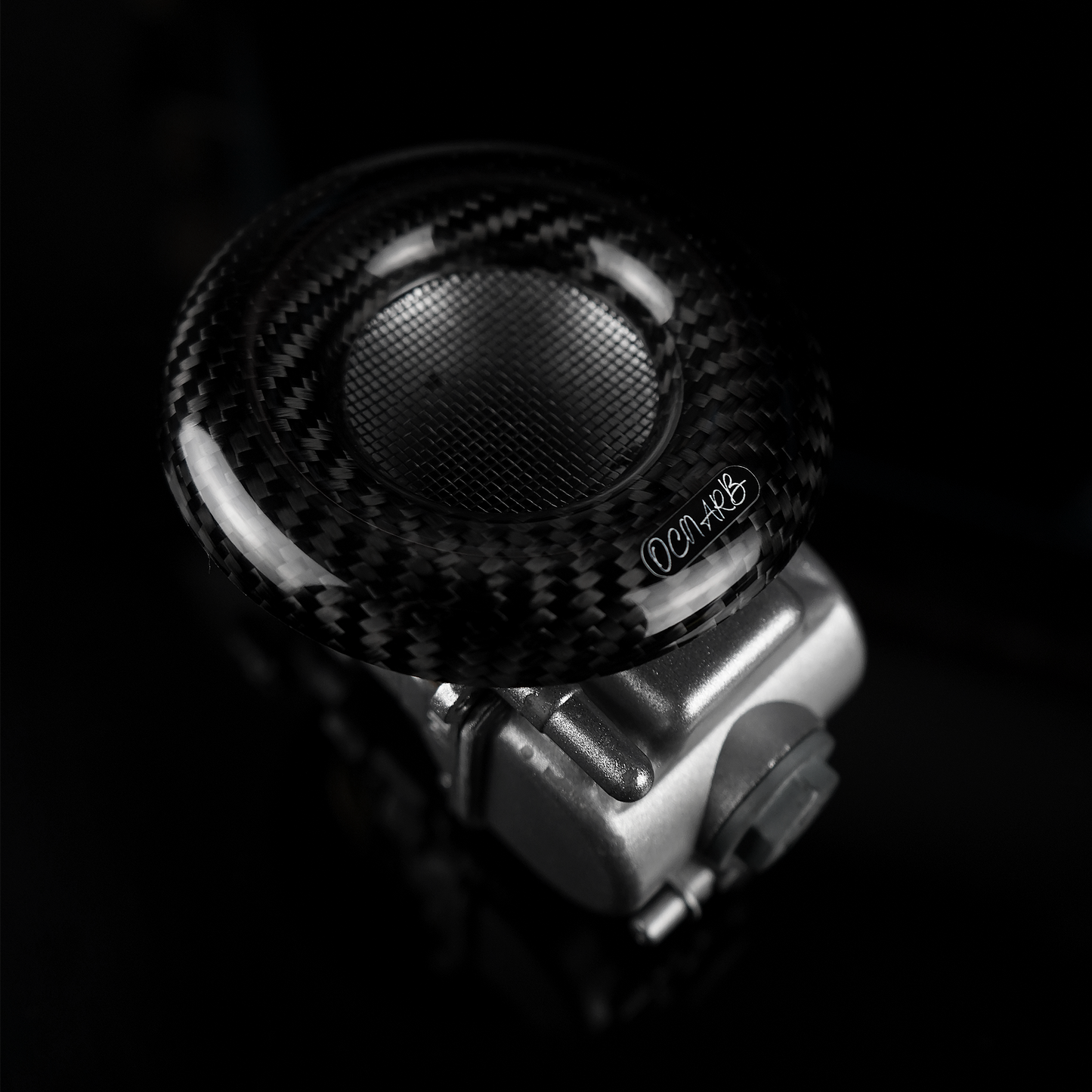

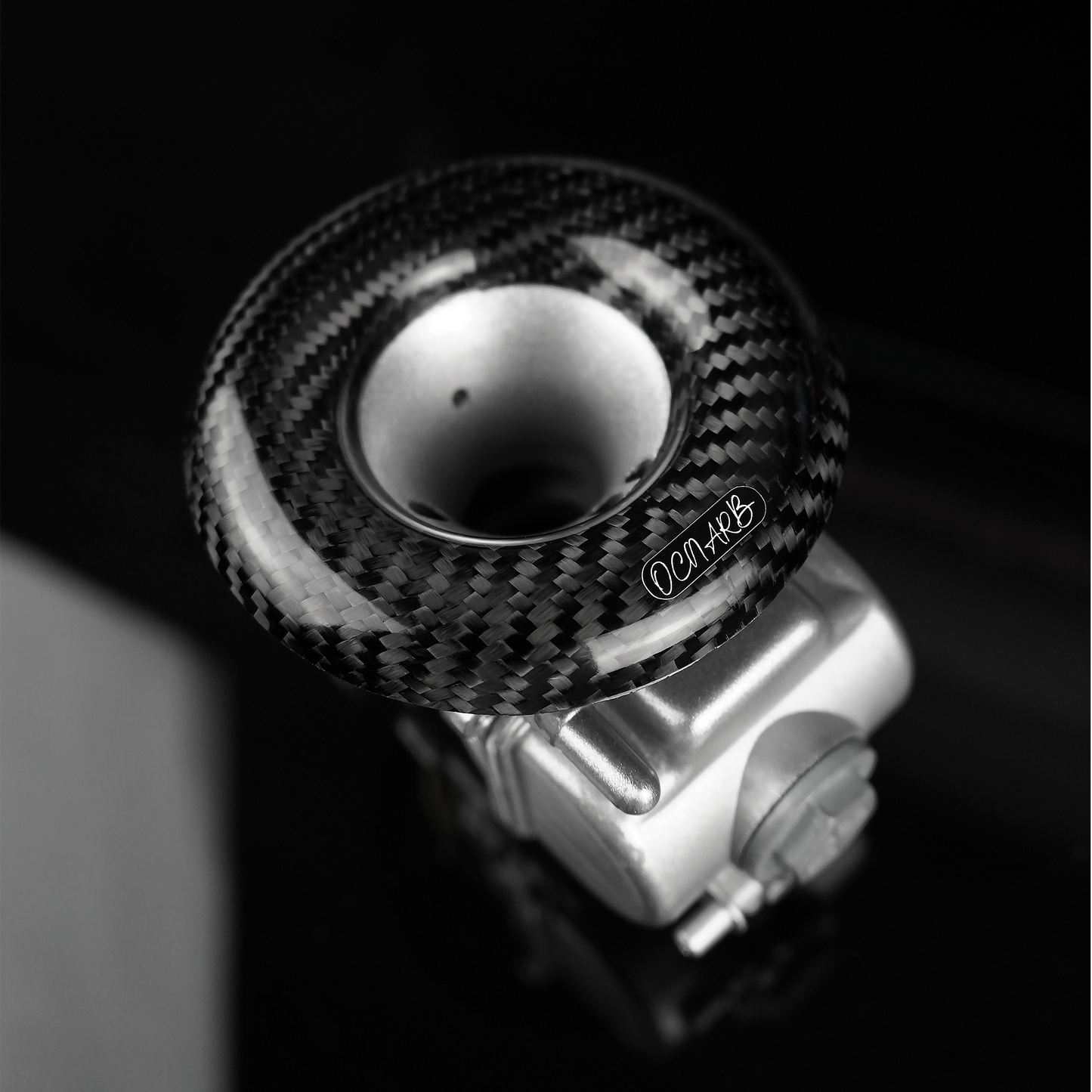

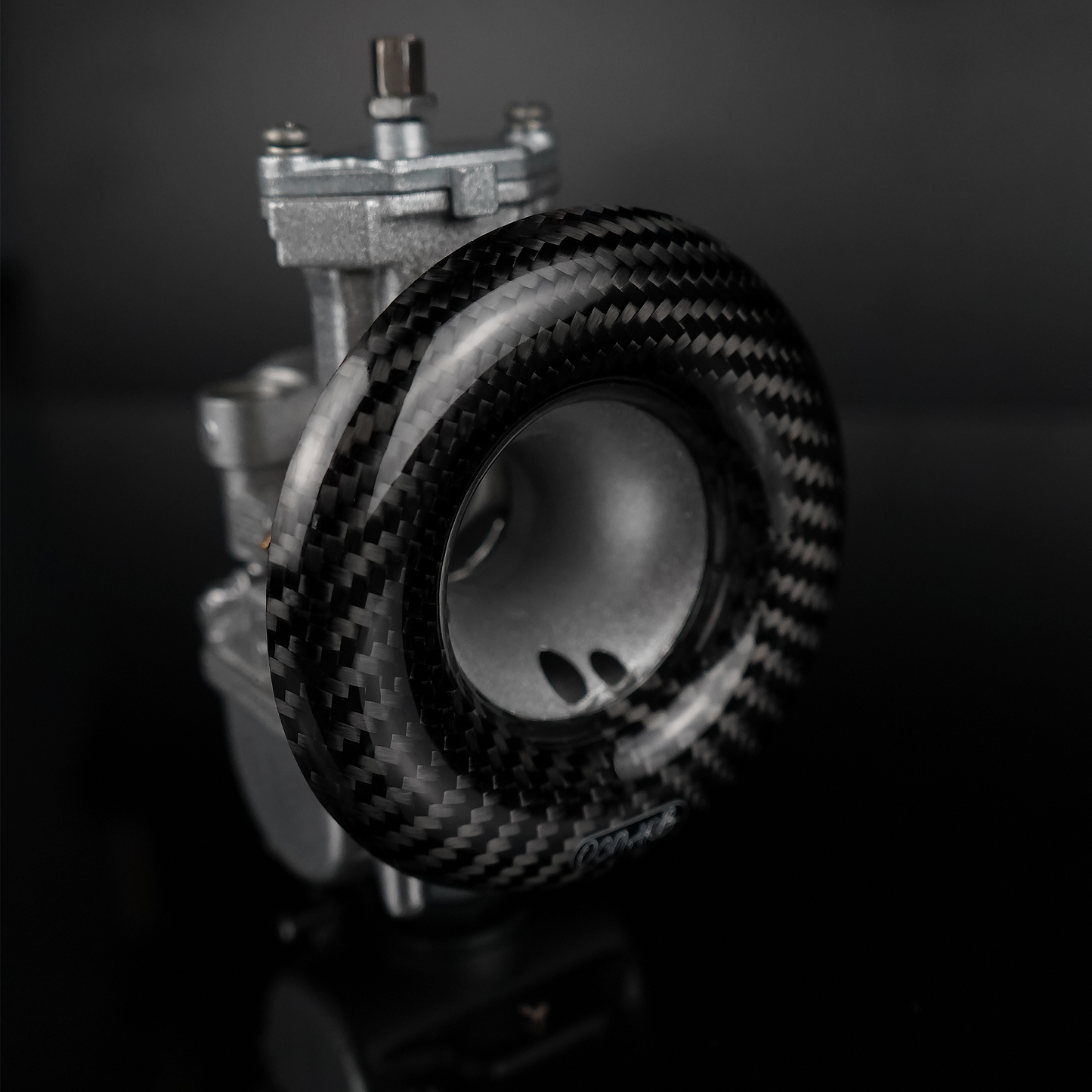

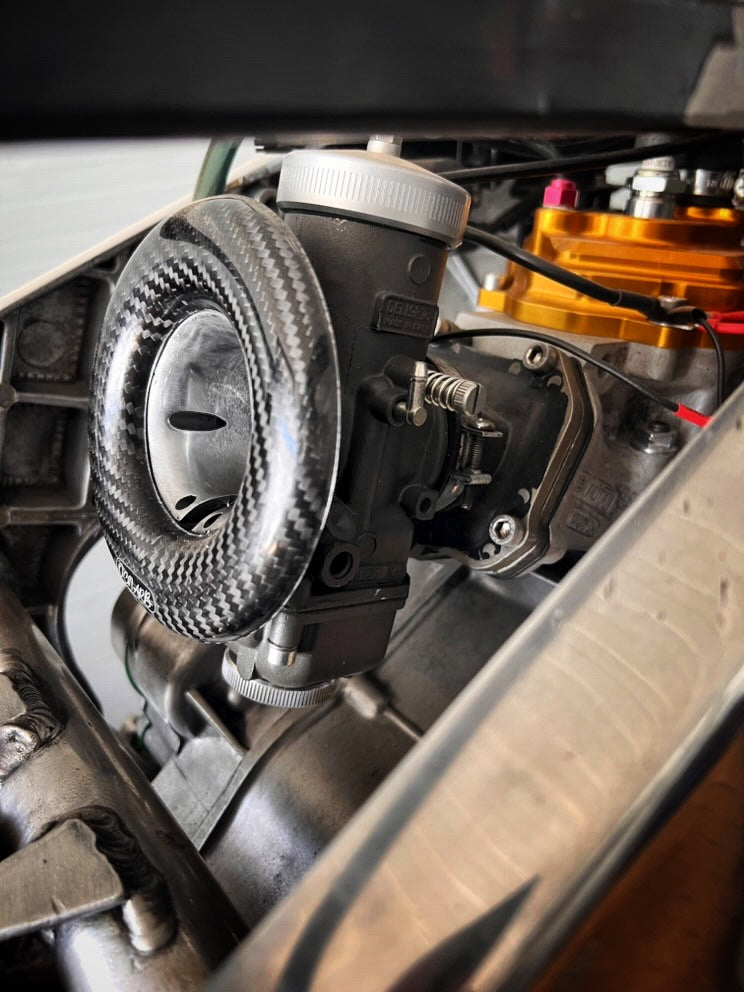

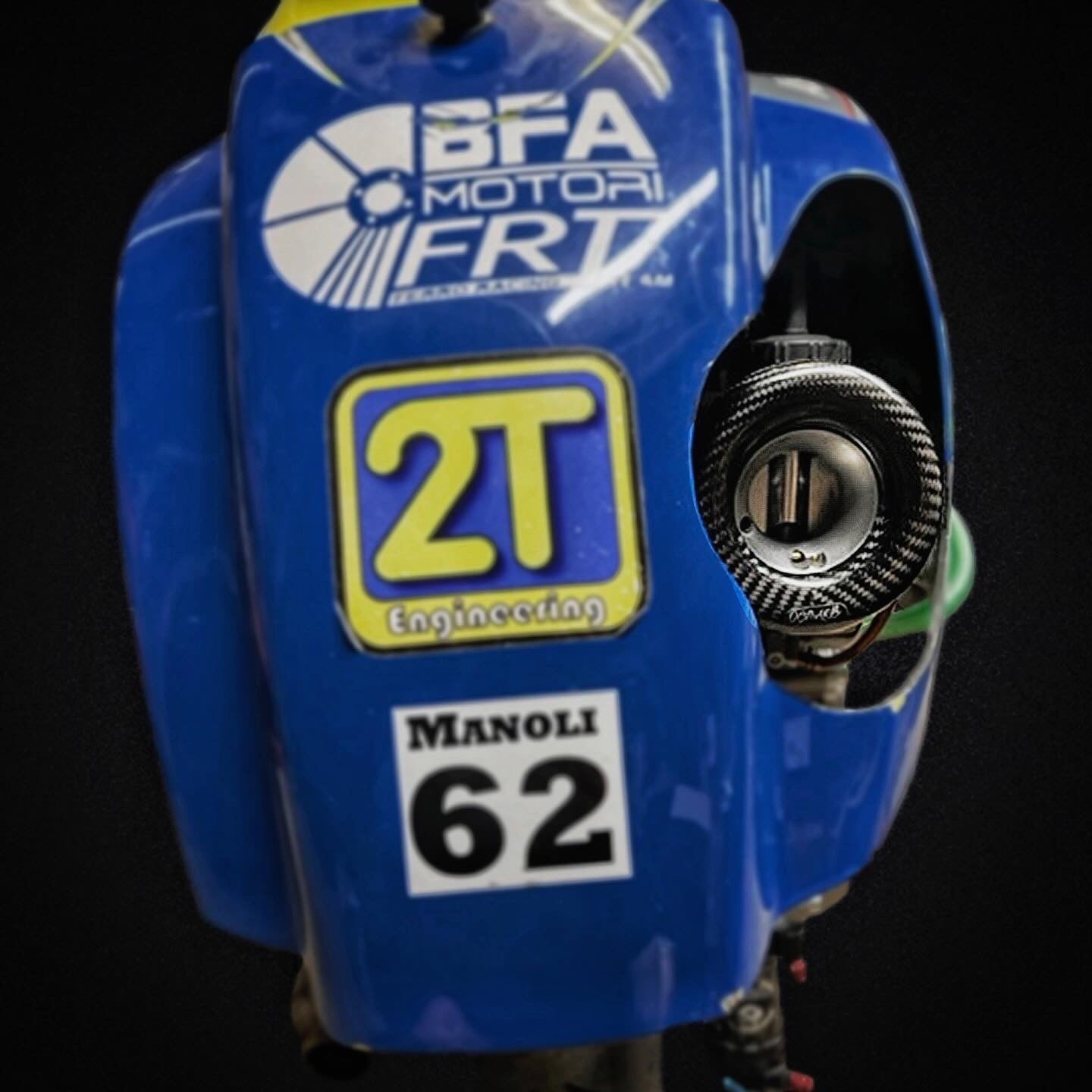

Ultra-lightweight Bell-Mouth made from the best Carbon Fiber Prepreg available, made with high temperatures and pressures. This design from an elliptical shape guarantees 5,8% more air intake through the carburetor. We have dyno tested with a increase of 0,7 HP on a derbi 80cc.
What's included?

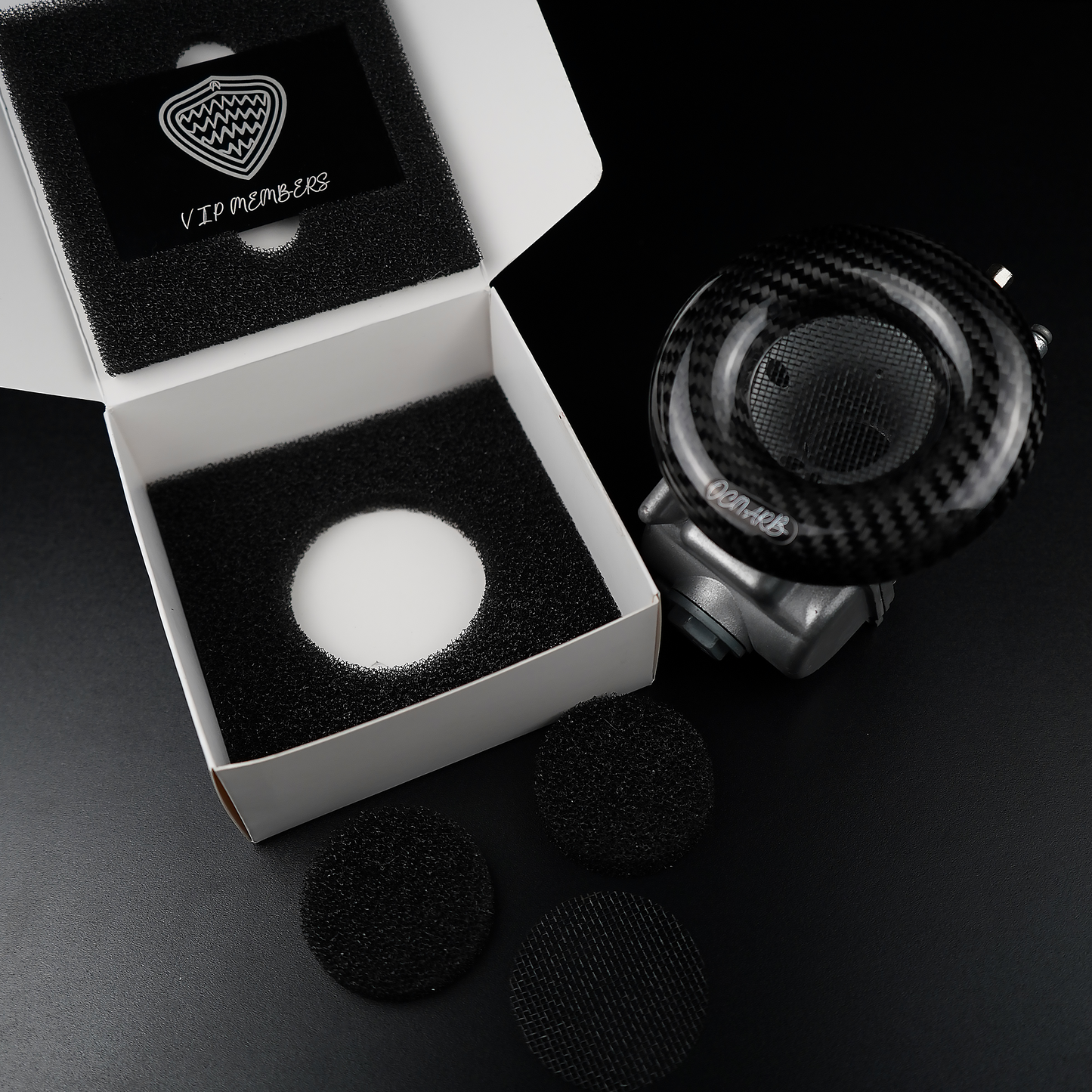

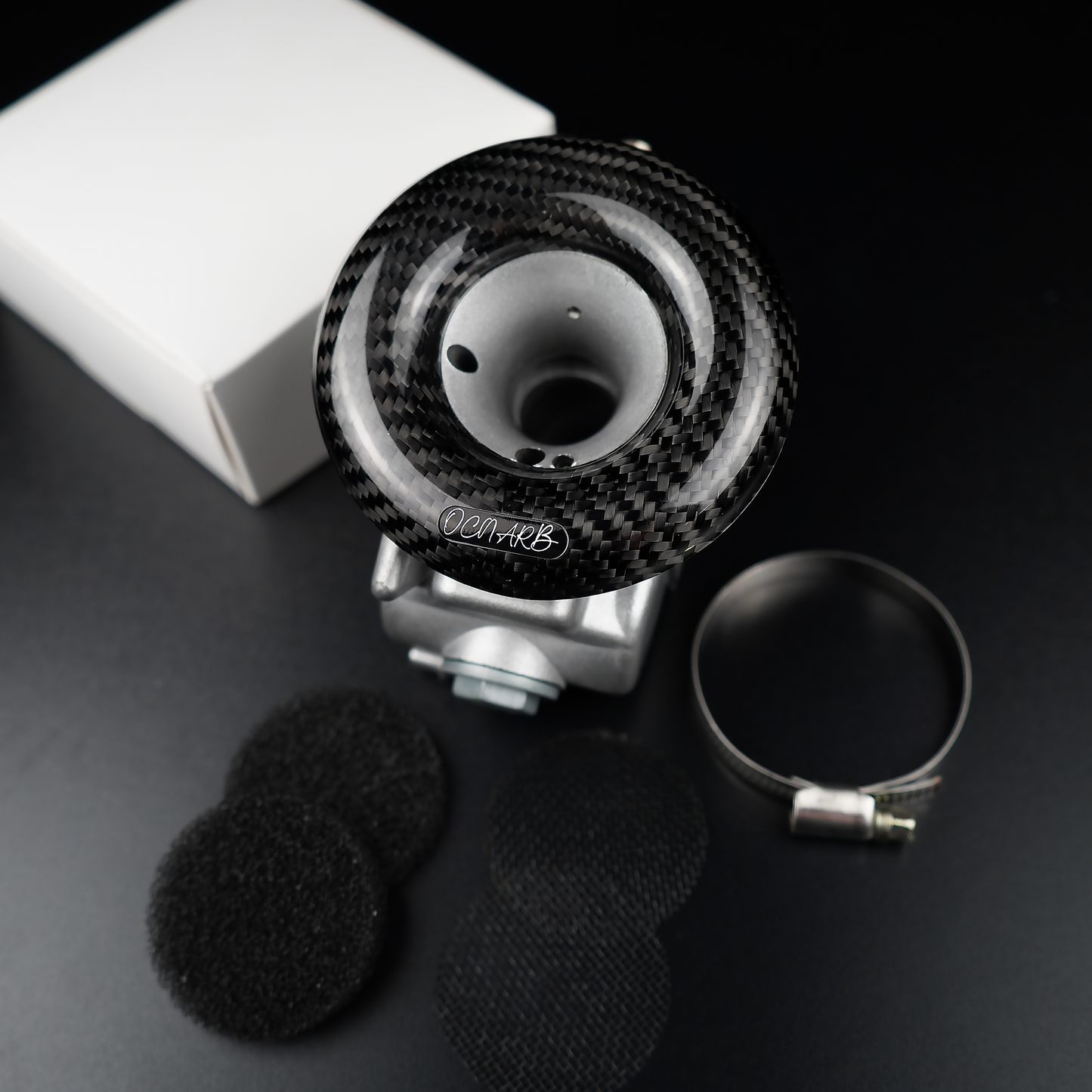

The bell-mouth comes with 2x mesh, 2x filters, and a collar, so you can choose the right option. If you choose to use the filter, place the mesh behind it for added strength.
Why using our Bell-Mouth?
More air intake -> More Fuel -> More Horsepower;
Protection for the engine added with the mesh or air filter;
Cool looking carburetor;
HELP WITH THE RIGHT SIZE BELL-MOUTH:
42mm:[Dellorto PHBH / PHBE 26-28]
43mm:[Mikuni VM20 to VM24]
44mm:[Mikuni TM24 / TM28 / VM26] ; [SmartCarb 26mm without ring adapter]
46mm:[Mikuni TM28SS]
49mm:[Dellorto VHST 24 / 26 / 28]
50mm:[Keihin Pwk / PE, Oko, Koso, Stage 6 (Until 28mm), Voca, Sunworld - 21 to 30mm] ; [SmartCarb 28mm without ring adapter / SmartCarb 26mm with ring adapter 50mm]
54mm:[Mikuni TM36]
55mm:[Keihin Pwk, Oko, Koso, Stage 6 (30 to 34mm), Voca, Sunworld 32 to 34mm] ;[Mikuni TM40]
58mm:[Mikuni VM30 / VM32 / VM34 / TM32 / TM34]
59mm:[Keihin Pwk - 33 and 35mm / Keihin PJ 34mm]
60mm:[Keihin PJ 36mm] ; [SmartCarb 28mm with ring adapter 60.3mm]
