Customizable Carbon Fiber Air Filters

100% Customizable Carbon Fiber Air Filters

Ultra-lightweight Air filters made from the best Carbon Fiber Prepreg available, made with high temperatures and pressures. German quality air filters with almost no restrinction in air intake. The best solution to protect your engine whitout loosing power.

The air filter is attached to the carburetor via a rubber with an O-ring inside. This is a press fit, so no collar is needed, which provide weigh reduction.

They are customizable:

Overall Diameter:

- 84mm; (This diameter is for nozzles 55mm and more)

- 97mm; (This diameter is for nozzles 50mm and above)

The Length of the air filter: (Not the overal length, just the air filter component length)

- 45mm;

- 80mm;

- 120mm;

The Length of the air filter:

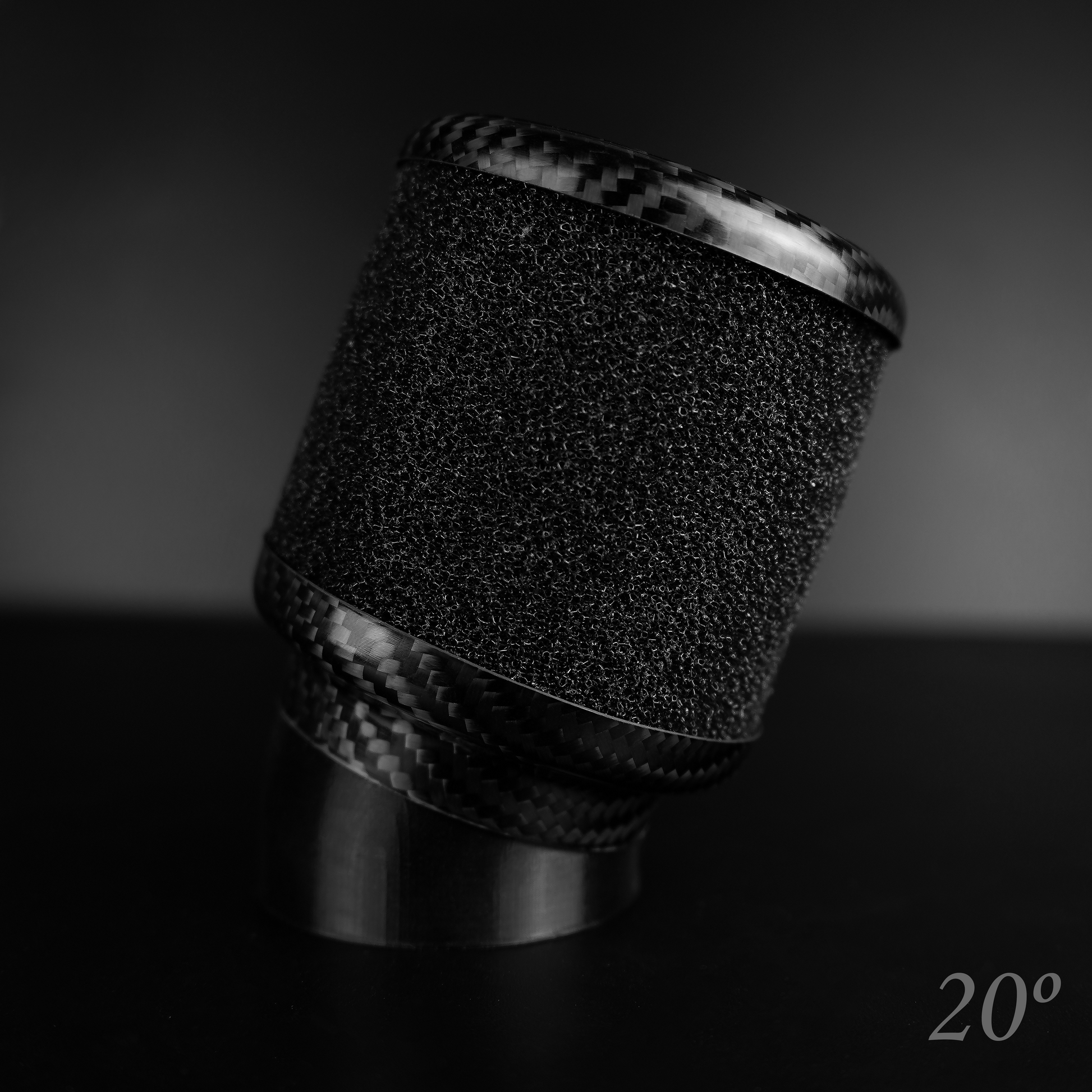

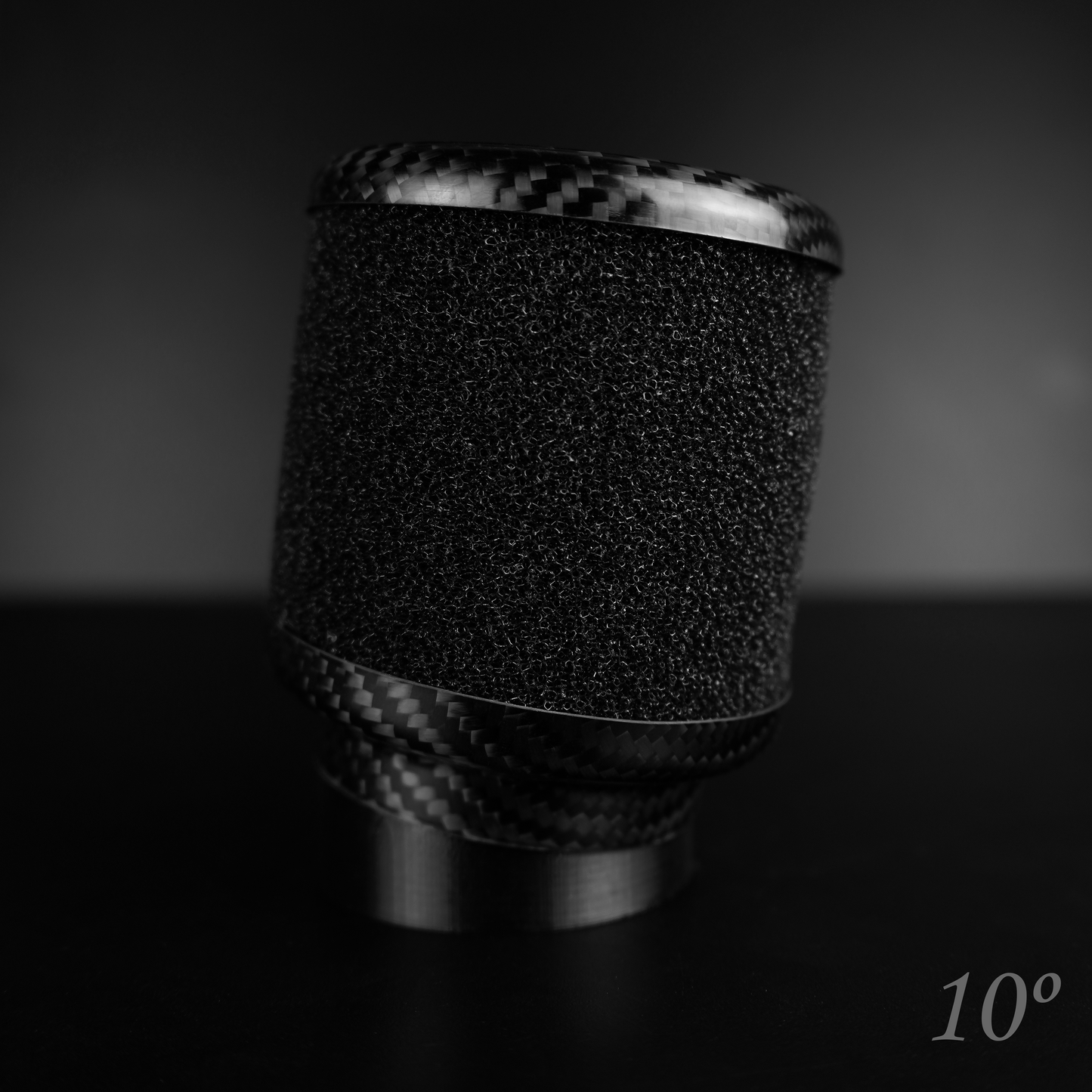

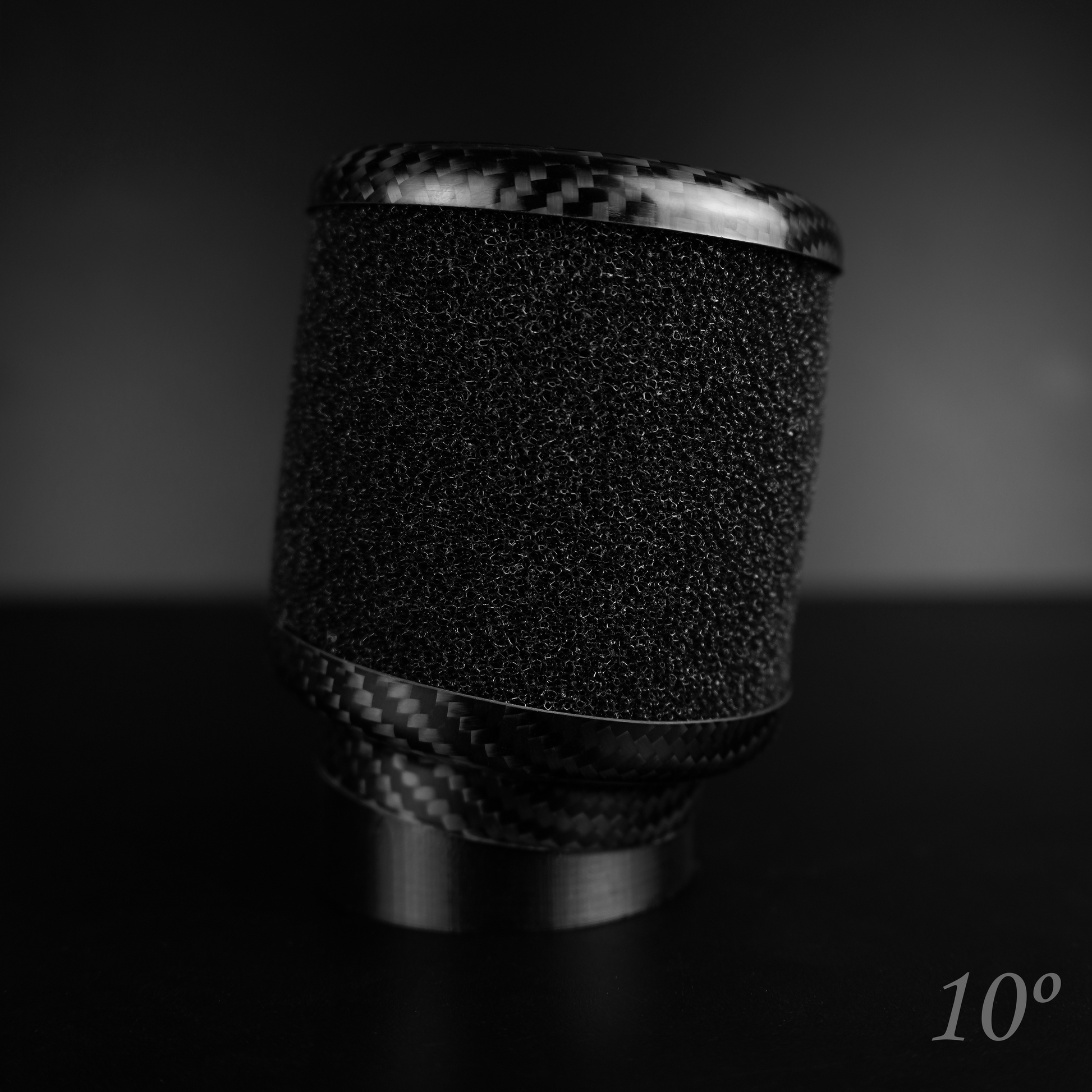

- 10º;

- 20º;

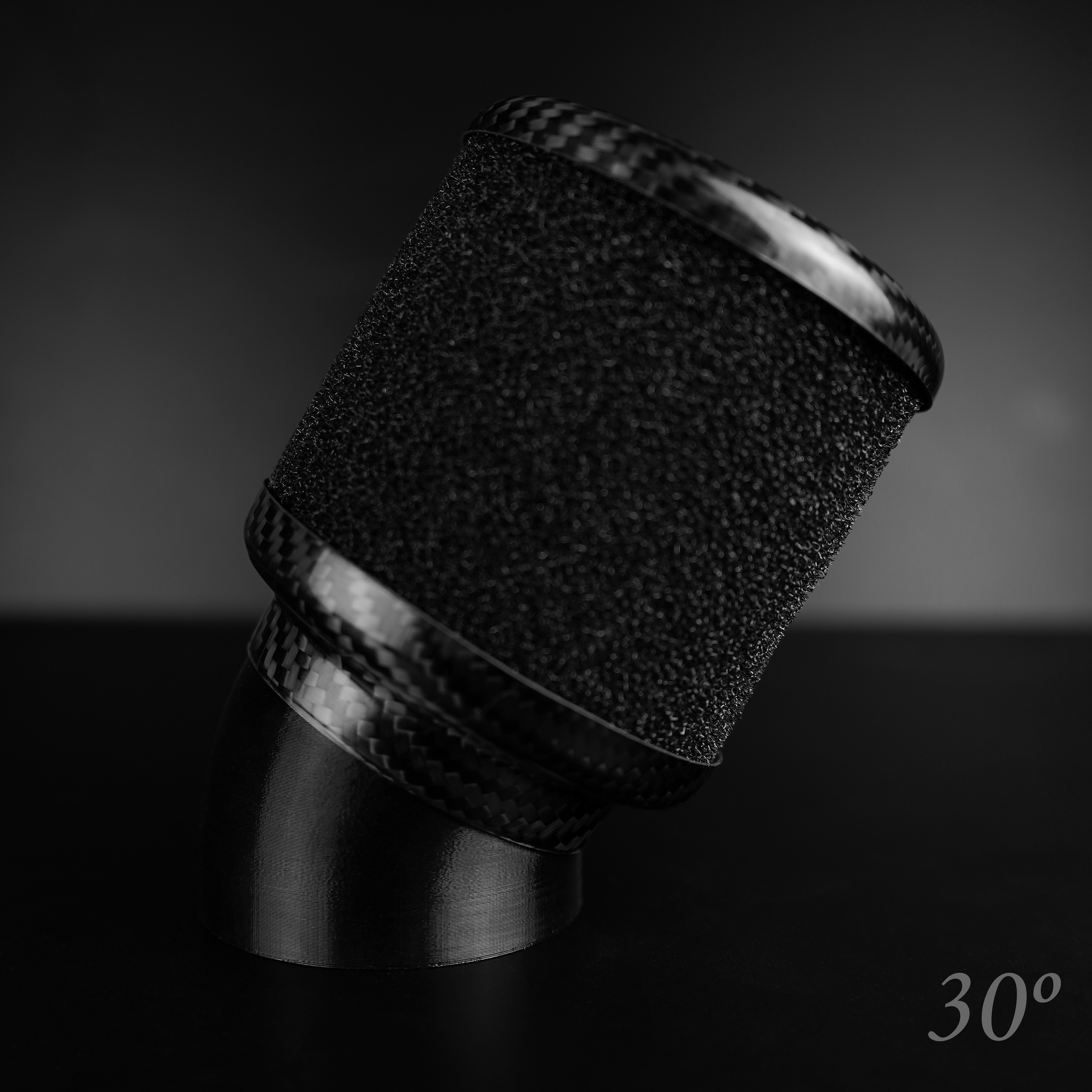

- 30º;

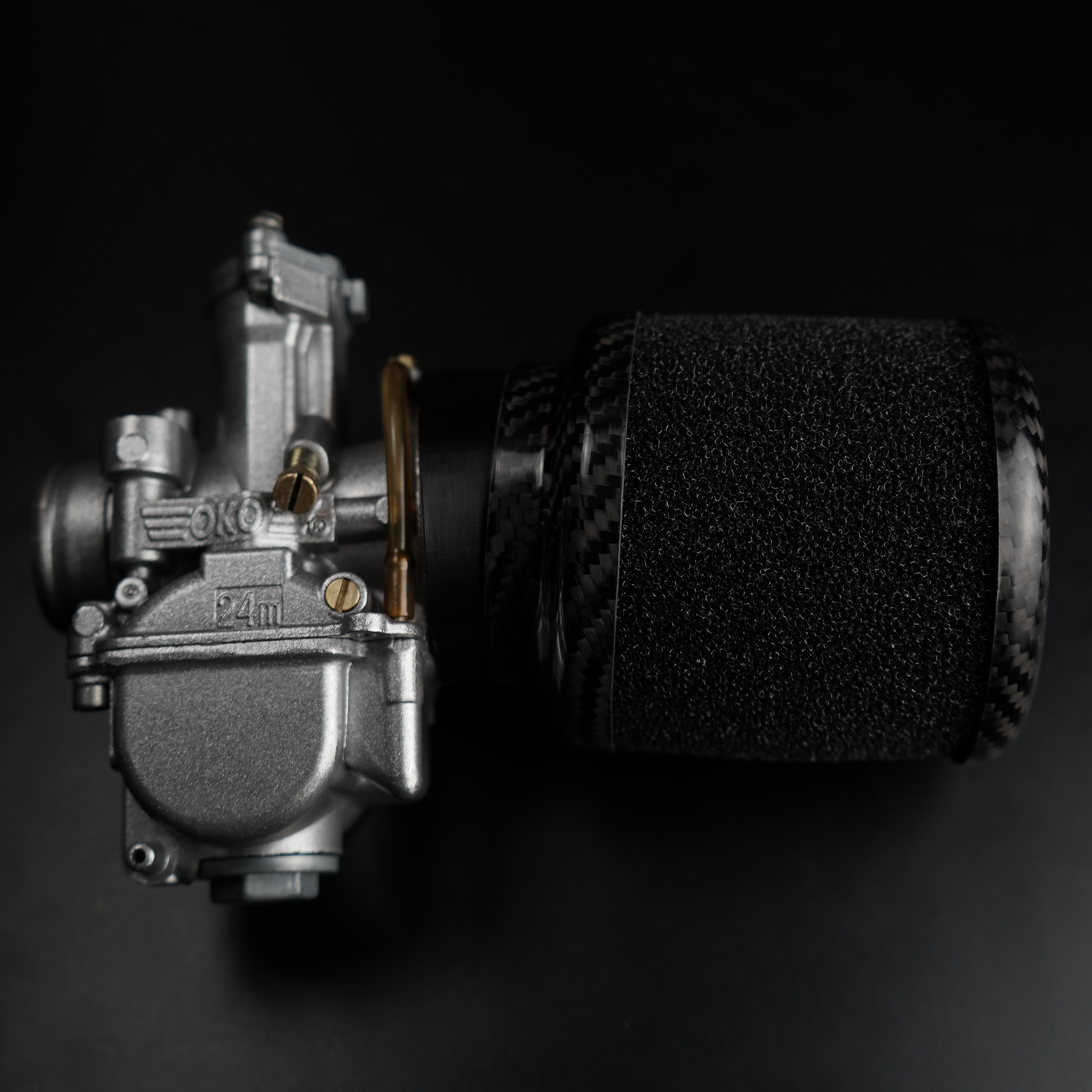

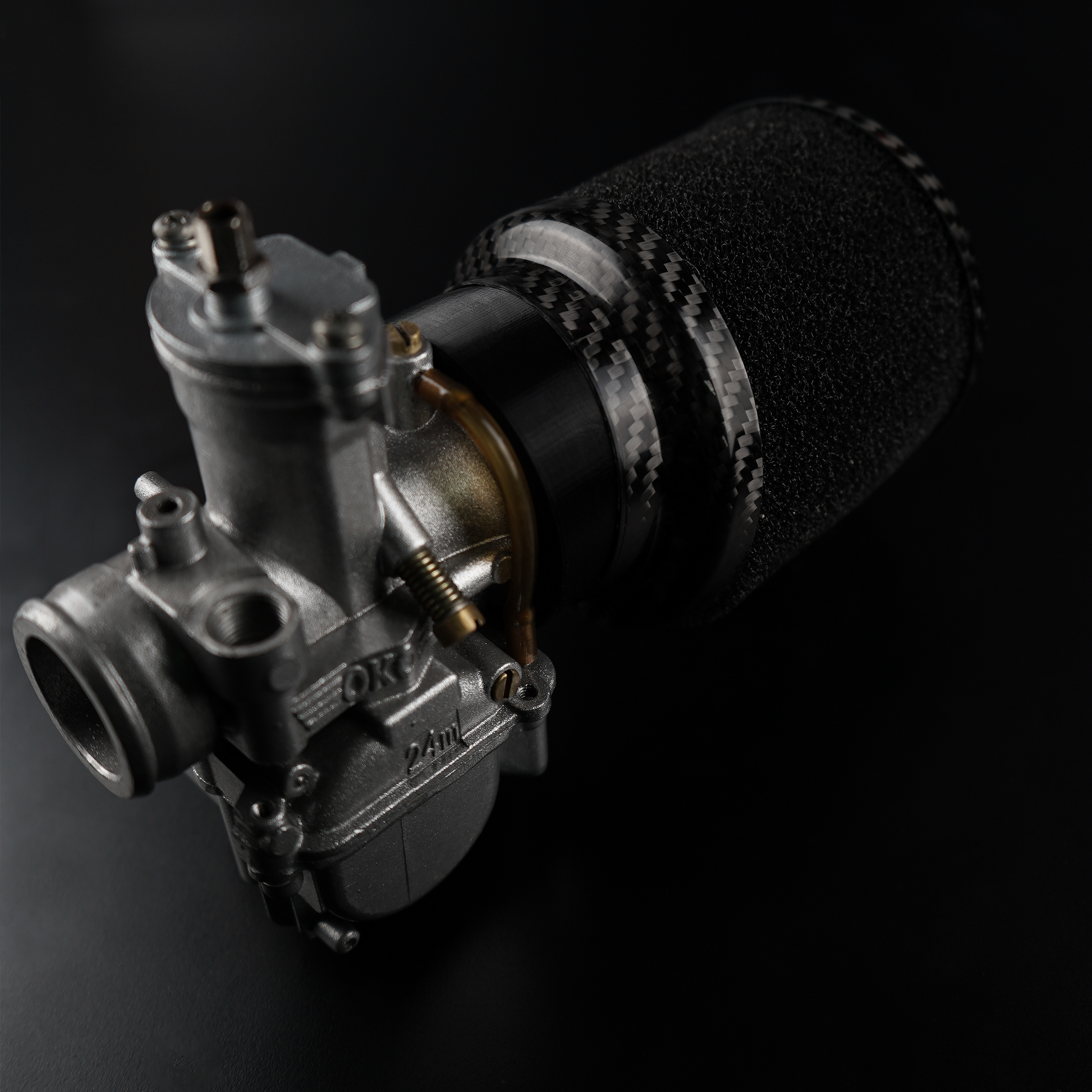

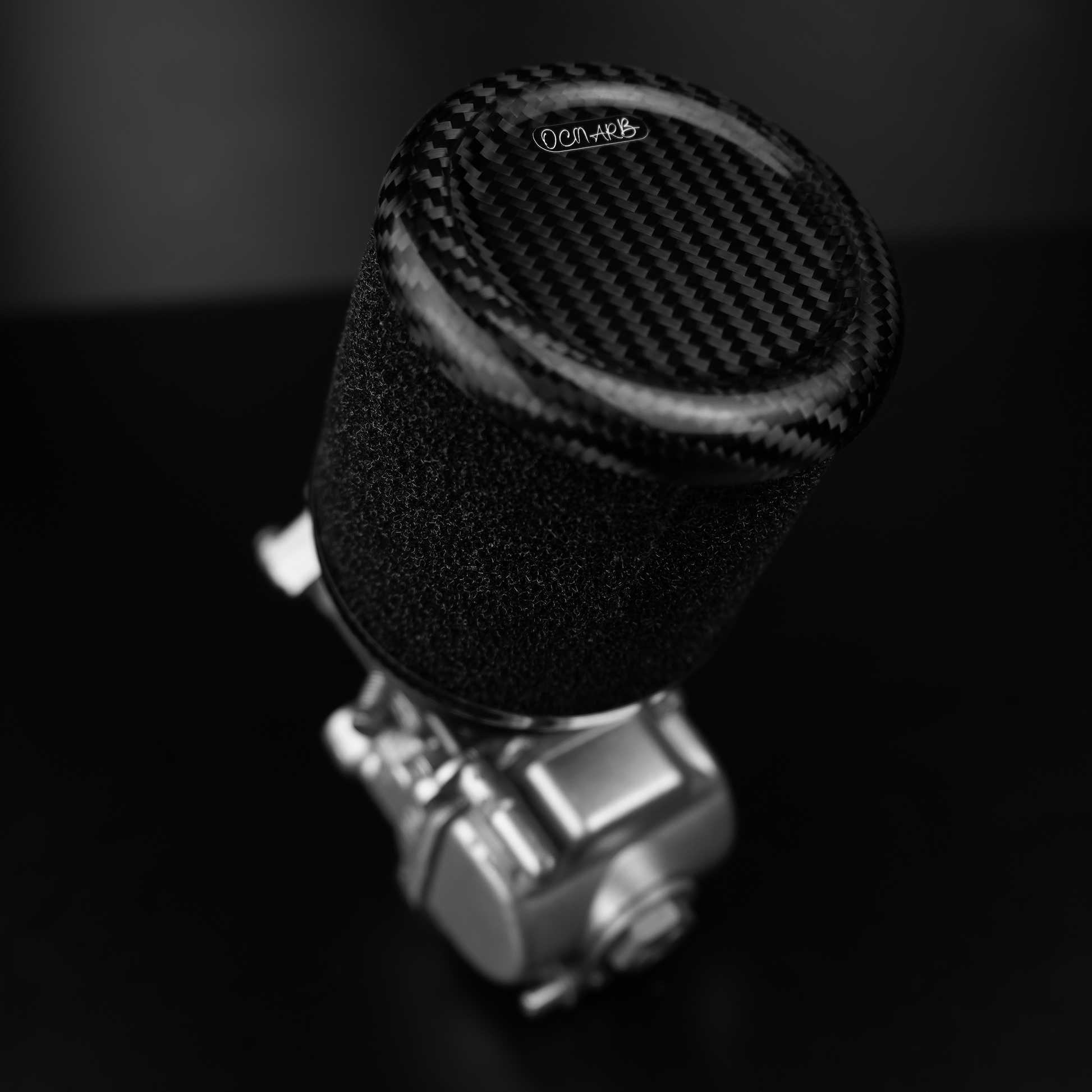

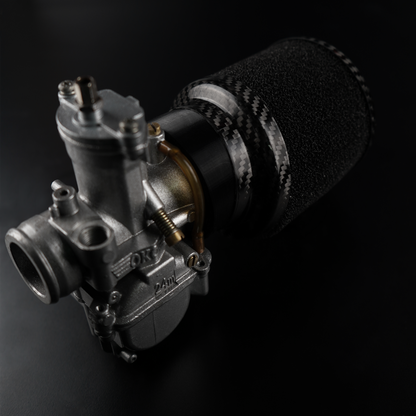

note: The air filter in the photos is 84mm overall Diameter, with 80mm in length of filter, and 10º in angle.

Why using our air filters ?

• More air intake -> More Fuel -> More Horsepower;
• Protection for the engine added with the air filter;
• Cool looking carburetor;

HELP WITH THE RIGHT SIZE MOUTH:

• 42mm: [Dellorto PHBH / PHBE 26-28]
• 43mm: [Mikuni VM20 to VM24]
• 44mm: [Mikuni TM24 / TM28 / VM26] ; [SmartCarb 26mm without ring adapter]
• 46mm: [Mikuni TM28SS]
• 49mm: [Dellorto VHST 24 / 26 / 28]
• 50mm: [Keihin Pwk / PE, Oko, Koso, Stage 6 (Until 28mm), Voca, Sunworld - 21 to 30mm] ; [SmartCarb 28mm without ring adapter / SmartCarb 26mm with ring adapter 50mm]
• 54mm: [Mikuni TM36]
• 55mm: [Keihin Pwk, Oko, Koso, Stage 6 (30 to 34mm), Voca, Sunworld 32 to 34mm] ;[Mikuni TM40]
• 58mm: [Mikuni VM30 / VM32 / VM34 / TM32 / TM34]
• 59mm: [Keihin Pwk - 33 and 35mm / Keihin PJ 34mm]
• 60mm: [Keihin PJ 36mm] ; [SmartCarb 28mm with ring adapter 60.3mm]
• 62mm: [Mikuni VM36 / VM38 / TM38] ; [SmartCarb 36mm / 38mm / 40mm] ; [Lectron 38]
• 63mm: [Keihin pwk 36 - 42mm] ; [SmartCarb 28mm with ring adapter 63.5mm]
• 65mm: [Dellorto PHBE 30HS / VHSH 30 / VHSC 39.5 / VHSB 34-39]
